K2411 - Telephone Tone Ringer

Product Overview

Forward Holdings

📥 Download Datasheet

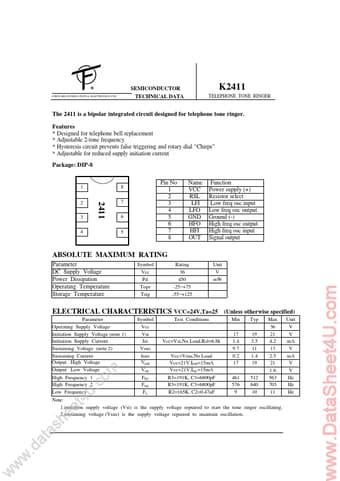

K2411 Telephone Tone Ringer by Forward Holdings - Datasheet Preview — Datasheet preview – K2411

Datasheet Details

Part number	K2411
Manufacturer	Forward Holdings
File Size	117.65 KB
Description	Telephone Tone Ringer
Datasheet	K2411 Datasheet
Additional preview pages of the K2411 datasheet.

Product details

Features

Designed for telephone bell replacement.
Adjustable 2-tone frequency.
Hysteresis circuit prevents false triggering and rotary dial “Chirps”.
Adjustable for reduced supply initiation current Package: DIP-8 Pin No 1 2 3 4 5 6 7 8 Name VCC RSL LFI LFO GND HFO HFI OUT Function Power supply (+) Resistor select Low freq osc input Low freq osc output Ground (-) High freq osc output High freq osc input Signal output 1 2 3 4 8 7 6 5.
