DV11201-xxx (DV Series) D-Sub Sonnector

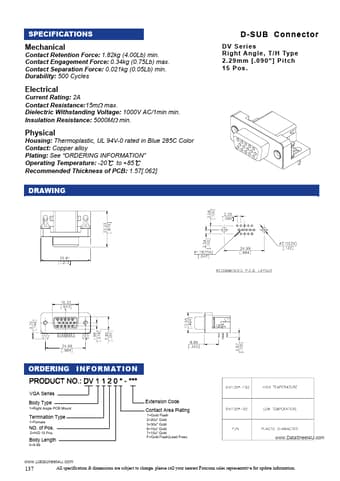

( DataSheet : www.DataSheet4U.com ) SPECIFICATIONS D-SUB Connector DV Series Right Angle, T/H Type 2.29mm [.090”] Pitch 15 Pos. Mechanical Contact Retention Force: 1.82kg (4.00Lb) min. Contact Engagement Force: 0.34kg (0.75Lb) max. Contact Separation Force: 0.021kg (0.05Lb) min. Durability: 500 Cycles Electrical Current Rating: 2A Contact Resistance:15mΩ max. Dielectric Withstanding Voltage: 1000V AC/1min min. Insulation Resistance: 5000MΩ min. Physical Housing: Thermoplastic, UL 94V-0 rate.

DV11201-xxx Datasheet (244.37 KB)

DV11201-xxx Datasheet Preview — Preview of DV11201-xxx PDF

Datasheet Details

Part number:

DV11201-xxx

Manufacturer:

Foxconn

File Size:

244.37 KB

Description:

(dv series) d-sub sonnector.
