LD2522F-S02, LD2522H-S01 Datasheet - Foxconn

LD2522F-S02 SAS Connector

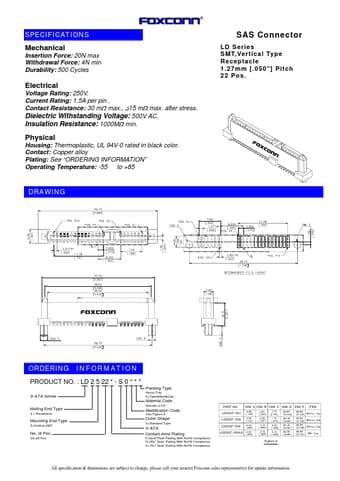

SPECIFICATIONS Mechanical Insertion Force: 20N max Withdrawal Force: 4N min Durability: 500 Cycles Electrical Voltage Rating: 250V. Current Rating: 1.5A per pin . Contact Resistance: 30 mΩ max., ∆15 mΩ max. after stress. Dielectric Withstanding Voltage: 500V AC. Insulation Resistance: 1000MΩ min. Physical Housing: Thermoplastic, UL 94V-0 rated in black color. Contact: Copper alloy Plating: See “ORDERING INFORMATION” Operating Temperature: -55 to +85 DRAWING SAS Connector LD Series SMT,Vertical .

LD2522H-S01-Foxconn.pdf

LD2522F-S02 Datasheet Preview — This datasheet PDF includes multiple part numbers: LD2522F-S02, LD2522H-S01. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LD2522F-S02, LD2522H-S01

Manufacturer:

Foxconn

File Size:

68.43 KB

Description:

Sas connector.

Note:

This datasheet PDF includes multiple part numbers: LD2522F-S02, LD2522H-S01.
Please refer to the document for exact specifications by model.
