90311-0xx - Crimp to Wire Contacts and Housings

Datasheet Details

Part number	90311-0xx
Manufacturer	Framatome Connectors International
File Size	144.48 KB
Description	Crimp to Wire Contacts and Housings
Datasheet	90311-0xx Datasheet
Additional preview pages of the 90311-0xx datasheet.

📁 Similar Datasheet

903133-xx - (903xxx-xx) Lock Washers (Accurate Screw Machine)
903135-xx - (903xxx-xx) Lock Washers (Accurate Screw Machine)
903137-xx - (903xxx-xx) Lock Washers (Accurate Screw Machine)
903139-xx - (903xxx-xx) Lock Washers (Accurate Screw Machine)
903141-xx - (903xxx-xx) Lock Washers (Accurate Screw Machine)
903143-xx - (903xxx-xx) Lock Washers (Accurate Screw Machine)
903145-xx - (903xxx-xx) Lock Washers (Accurate Screw Machine)
903147-xx - (903xxx-xx) Lock Washers (Accurate Screw Machine)
903149-xx - (903xxx-xx) Lock Washers (Accurate Screw Machine)
903180-xx - (903xxx-xx) Lock Washers (Accurate Screw Machine)

Other Datasheets by Framatome Connectors International

90311-0xx - Crimp to Wire Contacts and Housings

Full PDF Text Transcription

Click to expand full text

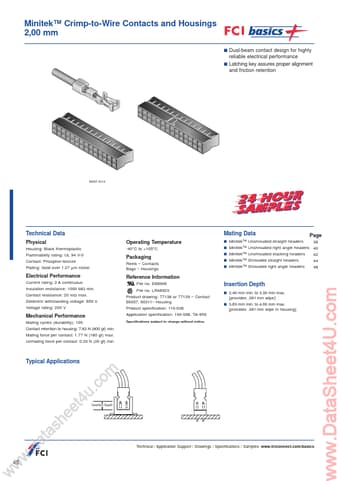

Minitek™ Crimp-to-Wire Contacts and Housings 2,00 mm s Dual-beam contact design for highly reliable electrical performance s Latching key assures proper alignment and friction retention 69307 2x14 Technical Data Physical Housing: Black thermoplastic Flammability rating: UL 94 V-0 Contact: Phosphor-bronze Plating: Gold over 1.27 µm nickel Mating Data Operating Temperature -40°C to +105°C s Minitek™ Unshrouded straight headers s Minitek™ Unshrouded right angle headers s Minitek™ Unshrouded stacking headers s Minitek™ Shrouded straight headers s Minitek™ Shrouded right angle headers Page 38 40 42 44 46 Packaging Reels – Contacts Bags – Housings Electrical Performance Current rating: 2 A continuous Insulation resistance: 1000 MΩ min. Contact resistance: 20 mΩ max.
