CHB100-24S25 Datasheet - FranMar

CHB100-24S25 50~150 Watts DIP Type Single Output DC-DC Converter

CHB100/CHB150 50~150 Watts DIP Type Single Output DC - DC Converter 50-150W Isolated Output / 2:1 Input Range Regulated Outputs / Efficiency To 89% Half-Brick size meet Industrial Standard 500KHz Switching Frequency CE Mark Meets 2004/108/EC ; UL60950-1 Approval Five-Sided Metal Case Input Voltage Range24V: 18-36VDC / 48V: 36-75VDC Undervoltage Lockout 24Vin power up: 17VDC / power down: 16VDC 48Vin power up: 34VDC / power down: 32.5VDC Positive Logic Remote .

CHB100-24S25 Datasheet (228.95 KB)

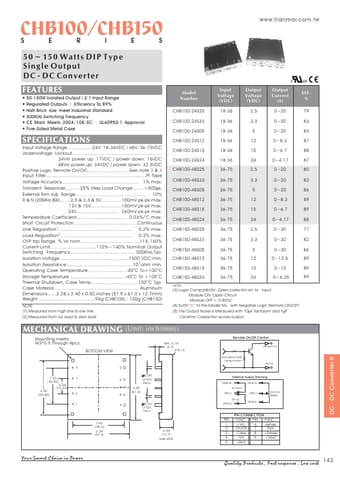

Preview of CHB100-24S25 PDF

Datasheet Details

Part number:

CHB100-24S25

Manufacturer:

FranMar

File Size:

228.95 KB

Description:

50~150 watts dip type single output dc-dc converter.
