CHB50-12S25 Datasheet - FranMar

CHB50-12S25 25~75 Watts DIP Type Single Output DC-DC Converter

CHB50/CHB75 25~75 Watts DIP Type Single Output DC - DC Converter 2:1 Input Range / Efficiency To 89% / Regulated Outputs CE Mark Meets 2006/95/EC,93/68/EEC,and 89/336/EEC Safety Meets UL60950-1, EN60950-1, and IEC60950-1 Five-Sided Metal Case / Half-Brick meet Industrial Standard Input Voltage Range12V: 9-18VDC 24V: 18-36VDC / 48V: 36-75VDC Undervoltage Lockout 12Vin power up: 8.8VDC / power down: 8VDC 24Vin power up: 17VDC / power down: 16VDC 48Vin power up: 34VDC / pow.

CHB50-12S25-FranMar.pdf

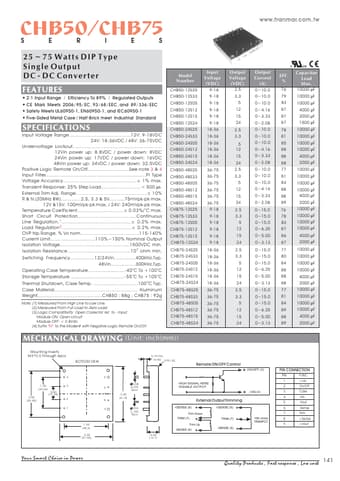

Preview of CHB50-12S25 PDF

Datasheet Details

Part number:

CHB50-12S25

Manufacturer:

FranMar

File Size:

199.86 KB

Description:

25~75 watts dip type single output dc-dc converter.
