D01-66, D01-01 Datasheet - FranMar

D01-66 1 Watts SIP Type DC-DC Converter

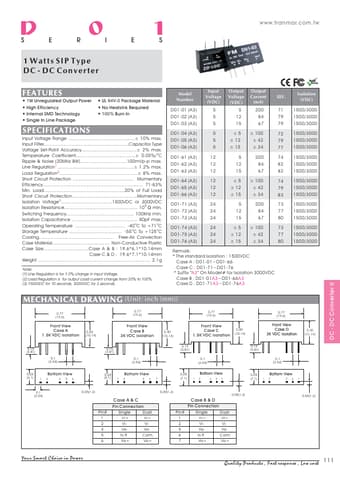

D SE 0 RI 1 ES www.franmar.com.tw 1 Watts SIP Type DC - DC Converter 1W Unregulated Output Power High Efficiency Internal SMD Technology Single In Line Package UL 94V-0 Package Material No Heatsink Required 100% Burn In Input Voltage Range ± 10% max. Input FilterCapacitor Type Voltage Set-Point Accuracy± 2% max. Temperature Coefficient± 0.05%/OC Ripple & Noise (20MHz BW)100mVp-p max. Line Regulation1± 1.2% max. Load Regulation2± 8% max. Short Circ.

D01-01-FranMar.pdf

D01-66 Datasheet Preview — This datasheet PDF includes multiple part numbers: D01-66, D01-01. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

D01-66, D01-01

Manufacturer:

FranMar

File Size:

78.03 KB

Description:

1 watts sip type dc-dc converter.

Note:

This datasheet PDF includes multiple part numbers: D01-66, D01-01.
Please refer to the document for exact specifications by model.
