Datasheet Details
Part number:
PKQ75-48S25, PKQ75-24S18
Manufacturer:
FranMar
File Size:
277.94 KB
Description:
50~75 watts dip type single output dc-dc converters.
Note:
This datasheet PDF includes multiple part numbers: PKQ75-48S25, PKQ75-24S18.
Please refer to the document for exact specifications by model.

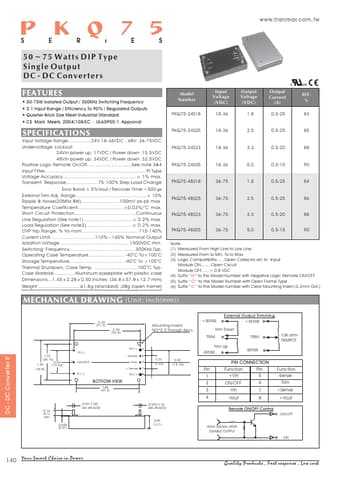

PKQ75-48S25, PKQ75-24S18, 50~75 Watts DIP Type Single Output DC-DC Converters
PKQ75 50~75 Watts DIP Type Single Output DC - DC Converters 50-75W Isolated Output / 300KHz Switching Frequency 2:1 Input Range / Efficiency To 90% / Regulated Outputs Quarter-Brick Size Meet Industrial Standard CE Mark Meets 2004/108/EC ; UL60950-1 Approval Input Voltage Range24V:18-36VDC ; 48V: 36-75VDC Undervoltage Lockout: 24Vin power up: 17VDC / Power down: 15.5VDC 48Vin power up: 34VDC / Power down: 32.5VDC Positive Logic Remote On/OffSee note 3&4 Input FilterPI Ty
