AN2207 - Using the MPMC8245 Card in Standalone Mode

Freescale Semiconductor

The AN2207 by Freescale Semiconductor is a Using the MPMC8245 Card in Standalone Mode. Below is the official datasheet preview.

📥 Download Datasheet

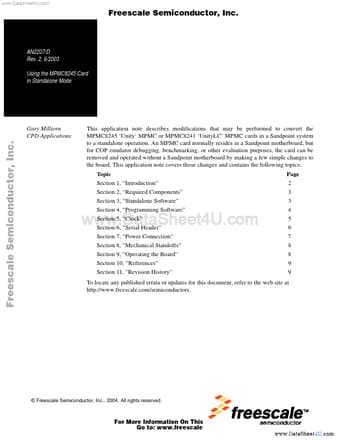

AN2207 Using the MPMC8245 Card in Standalone Mode by Freescale Semiconductor - Datasheet Preview — Official preview page of the **AN2207** Using the MPMC8245 Card in Standalone Mode datasheet (Freescale Semiconductor).

Datasheet Details

Part number	AN2207
Manufacturer	Freescale Semiconductor
File Size	417.16 KB
Description	Using the MPMC8245 Card in Standalone Mode
Datasheet	AN2207_FreescaleSemiconductor.pdf
Additional preview pages of the AN2207 datasheet.

AN2207 Product details

Description

3.3-V DIP-8 oscillator can Vendors FOX Electronic: H5C-2E3-33.000 (33 MHz) H5C-2E3-66.000 (66 MHz) Ecliptek: EC1300HSTS-33.000M (33 MHz) EC1300HSTS-66.000M (66 MHz) Pletronics: SQ3345V-33.000 MHZ (33 MHz) SQ3345V-66.000 MHZ (66 MHz) The following components are required to convert or operate an MPMC8245 board in standalone mode.The parts are not supplied with the Sandpoint system and must be obtained or created by the user.Freescale Semiconductor, Inc Socket 4-pin DIP-8 socket (recommended

Features

are also supplied on the MPMC8241 ‘UnityLC’ module, which is similar enough to the MPMC8245 that it will not be specifically handled in this document (standalone operation is identical for both). These are standard features of most MPMC cards, but the MPC8245 also provides a serial port, reset controller, and oscillator. With these components, an MPMC8245 contains most of the features needed for a standalone embedded system:.
