DSP56002 24-Bit Digital Signal Processor

of the DSP56002/L002 and are necessary to properly design with the part. Documentation is available from a local Motorola distributor, a Motorola semiconductor sales ofﬁce, or a Motorola Literature Distribution Center listed on the back page. Table 1 DSP56002/L002 Documentation Topic DSP56000 Family.

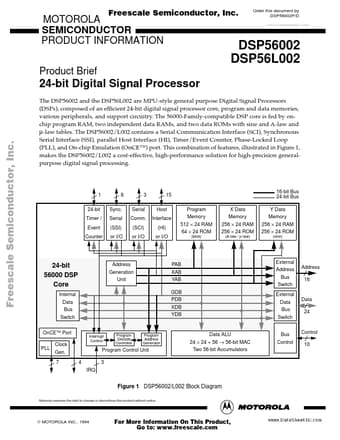

MOTOROLA SEMICONDUCTOR PRODUCT INFORMATION Product Brief Freescale Semiconductor, Inc. Order this document by DSP56002P/D www.DataSheet4U.com DSP56002 DSP56L002 24-bit Digital Signal Processor The DSP56002 and the DSP56L002 are MPU-style general purpose Digital Signal Processors (DSPs), composed of an efﬁcient 24-bit digital signal processor core, program and data memories, various peripherals, and support circuitry. The 56000-Family-compatible DSP core is fed by onchip program RAM, two inde.

DSP56002 Features

* illustrated in Figure 1, makes the DSP56002/L002 a cost-effective, high-performance solution for high-precision generalpurpose digital signal processing. Freescale Semiconductor, Inc 1 24-bit Timer / Event Counter 6 Sync. Serial (SSI) or I/O 3 Serial Comm. (SCI) or I/O 15 Host Interface (HI) o
