MC13213 2.4 GHz Low Power Transceiver

MC13211 MC13211R2 MC13212 MC13212R2 MC13213 LGA LGA Tape and Reel LGA LGA Tape and Reel LGA Intended for proprietary applications and Freescale Simple MAC (SMAC) Intended for proprietary applications and Freescale Simple MAC (SMAC) Intended for 802.15.4 Standard compliant applications and Freesca.

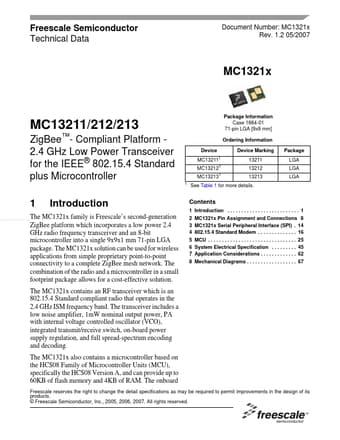

Freescale Semiconductor Technical Data Document Number: MC1321x Rev. 1.2 05/2007 MC1321x MC13211/212/213 ZigBee™- Compliant Platform 2.4 GHz Low Power Transceiver for the IEEE® 802.15.4 Standard plus Microcontroller 1 Package Information Case 1664-01 71-pin LGA [9x9 mm] Ordering Information Device MC13211 1 1 1 Device Marking 13211 13212 13213 Package LGA LGA LGA MC13212 MC13213 See Table 1 for more details. 1 Introduction Contents 1 2 3 4 5 6 7 8 Introduction . . . . . . . . . . . ..

MC13213 Features

* 802.15.4 Standard compliant on-chip transceiver/modem

* 2.4GHz

* 16 selectable channels

* Programmable output power Multiple power saving modes 2V to 3.4V operating voltage with on-chip voltage regulators -40°C to +85°C temperature range Low external component count Supports
