MC33660 - ISO K Line Serial Link Interface

Features

  • Operates over wide supply voltage of 8.0 to 18 V Operating temperature of -40 to 125 °C Interfaces directly to standard CMOS microprocessors ISO K line pin protected against shorts to battery Thermal shutdown with hysteresis ISO K line pin capable of high currents ISO K line can be driven with up to 10 nF of parasitic capacitance 8.0 kV ESD protection attainable with few additional components Stan.

📥 Download Datasheet

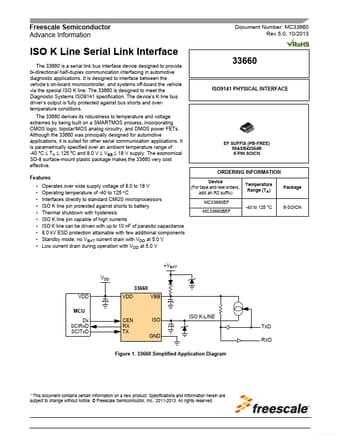

Datasheet preview – MC33660

📁 Similar Datasheet

  • MC33660 - ISO K line serial link interface (NXP)
  • MC33664 - Isolated network high-speed transceiver (NXP)
  • MC33665A - Battery management communication gateway (NXP)
  • MC3360P - 1/4 Watt Audio Amplifier (Motorola)
  • MC3361 - LOW POWER NARROW BAND FM IF (SUM)
  • MC3361 - Low Power Narrow Band FM IF (MC Devices)
  • MC3361 - Low Power Narrow Band FM IF (Samsung Electronics)
  • MC3361 - Low Power Narrowband FM IF (NXP)
  • MC3361B - LOW POWER NARROWBAND FM IF (Motorola)
  • MC3361BP - LOW VOLTAGE/POWER NARROW BAND FM IF (UTC)
Other Datasheets by Freescale Semiconductor

Full PDF Text Transcription

Click to expand full text
Freescale Semiconductor Advance Information Document Number: MC33660 Rev 5.0, 10/2013 ISO K Line Serial Link Interface The 33660 is a serial link bus interface device designed to provide bi-directional half-duplex communication interfacing in automotive diagnostic applications. It is designed to interface between the vehicle’s on-board microcontroller, and systems off-board the vehicle via the special ISO K line. The 33660 is designed to meet the Diagnostic Systems ISO9141 specification. The device’s K line bus driver’s output is fully protected against bus shorts and overtemperature conditions. The 33660 derives its robustness to temperature and voltage extremes by being built on a SMARTMOS process, incorporating CMOS logic, bipolar/MOS analog circuitry, and DMOS power FETs.
