MC33874

Quad High-Side Switch

MC33874 Features

* Quad 35 mΩ High-Side Switches (at 25°C)

* Operating Voltage Range of 6.0 V to 27 V with Standby Current < 5.0 µA

* SPI Control of Overcurrent Limit, Overcurrent Fault Blanking Time, Output OFF Open Load Detection, Output ON / OFF Control, Watchdog Timeout, Slew Rates, and F

MC33874 General Description

of each pin can be found in the Functional Pin Description section beginning on page 15. Pin Number 1 2 3 5 6 4 7 8 9 10 11 12 13 Pin Name CSNS IN0 IN1 IN2 IN3 TEMP FS WAKE RST CS SCLK SI VDD Pin Function Output Input Formal Name Output Current Monitoring Serial Inputs Output Output Input Input Inp.

MC33874 Datasheet (683.86 KB)

Preview of MC33874 PDF

Datasheet Details

Part number:

MC33874

Manufacturer:

Freescale Semiconductor

File Size:

683.86 KB

Description:

Quad high-side switch.

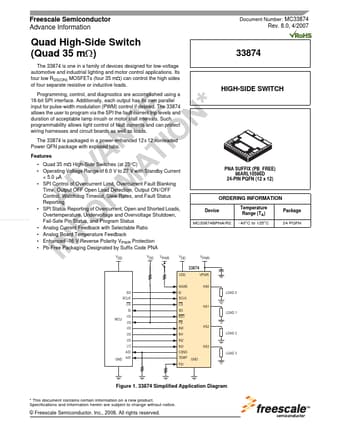

Freescale Semiconductor Advance Information Document Number: MC33874 Rev. 8.0, 4/2007 Quad High-Side Switch (Quad 35 mΩ) The 33874 is one in a fami.
