MMA1260EG - Low G Micromachined Accelerometer

PCB Layout STATUS Accelerometer ST VOUT VSS VDD R 1 kΩ C 0.1 µF VRH C 0.1 µF P1 Microcontroller P0 A/D In C 0.1 µF VSS VSS VSS VOUT STATUS VDD VSS ST 1 2 3 4 5 6 7 8 16 15 14 13 12 11 10 9 N/C N/C N/C N/C N/C N/C N/C N/C VSS C 0.1 µF VDD Table 3. Pin Descriptions Pin No. 1 thru 3 4 5 6 7 8 9 t.

MMA1260EG Features

* Integral Signal Conditioning Linear Output 2nd Order Bessel Filter Calibrated Self-test EPROM Parity Check Status Transducer Hermetically Sealed at Wafer Level for Superior Reliability Robust Design, High Shock Survivability MMA1

MMA1260EG_FreescaleSemiconductor.pdf

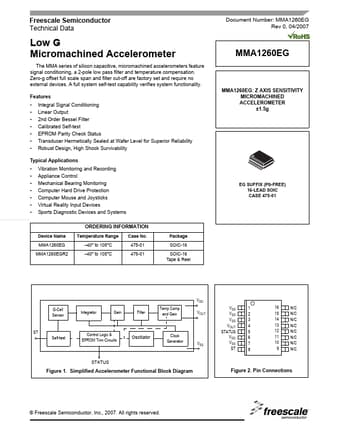

Preview of MMA1260EG PDF
