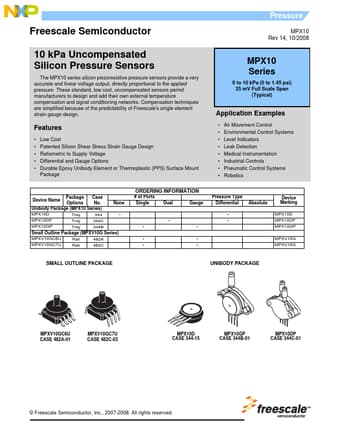

MPX10 10 kPa Uncompensated Silicon Pressure Sensors

Freescale Semiconductor + 10 kPa Uncompensated Silicon Pressure Sensors The MPX10 series silicon piezoresistive pressure sensors provide a very accurate and linear voltage output, directly proportional to the applied pressure. These standard, low cost, uncompensated sensors permit manufacturers to design and add their own external temperature compensation and signal conditioning networks. Compensation techniques are simplified because of the predictability of Freescale's single element strain ga.

MPX10 Features

* Low Cost

* Patented Silicon Shear Stress Strain Gauge Design

* Ratiometric to Supply Voltage

* Differential and Gauge Options

* Durable Epoxy Unibody Element or Thermoplastic (PPS) Surface Mount Package Pressure MPX10 Rev 14, 10/2008 MPX10 Series 0 to 10 kP
