MPX2200GP - On-Chip Temperature Compensated Silicon Pressure Sensors

Product Overview

Freescale Semiconductor

Part number	MPX2200GP
Manufacturer	Freescale Semiconductor
File Size	138.37 KB
Description	On-Chip Temperature Compensated Silicon Pressure Sensors
Datasheet	MPX2200GP Datasheet
Note	This datasheet PDF includes multiple part numbers: MPX2200GP, MPX2200. Please refer to the document for exact specifications by model.

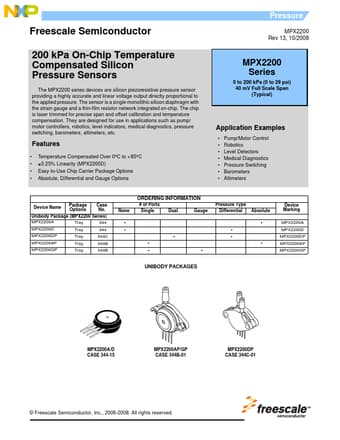

Additional preview pages of the MPX2200GP datasheet.

Temperature Compensated Over 0°C to +85°C.
±0.25% Linearity (MPX2200D).
Easy-to-Use Chip Carrier Package Options.
Absolute, Differential and Gauge Options Pressure MPX2200 Rev 13, 10/2008 MPX2200 Series 0 to 200 kPa (0 to 29 psi) 40 mV Full Scale Span (Typical).
