D76 Datasheet - Frequency

32 Pin DIP 6 Pole Filters

D76 Features

* Benefits:

* Low cost solution for low frequency signal conditioning

* Compact DIP design minimizes board space requirements

* Plug-in ready-to-use, reducing engineering design and manufacturing time

* Factory tuned, no external clocks or adjustments needed saving time

D76 General Description

The D76 and DP76 Series of low-power, fixedfrequency, linear active filters are high performance, 6-pole filters in a compact package. These Butterworth and Bessel low-pass and Butterworth high-pass filters (D76 only) combine linear active filter design with the space savings of a 32-pin dual in-lin.

D76 Datasheet (218.18 KB)

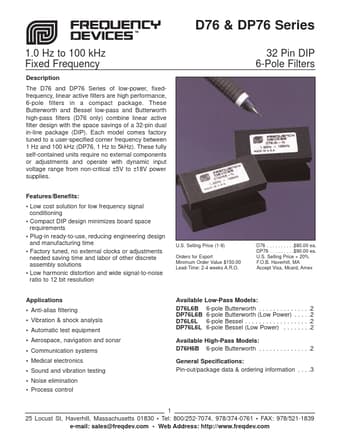

D76 Datasheet Preview — Preview of D76 PDF

Datasheet Details

Part number:

D76

Manufacturer:

Frequency

File Size:

218.18 KB

Description:

32 pin dip 6 pole filters.
