DP2549K0603BT

DIPLEXER

DP2549K0603BT Features

* 1. Surface mount diplexer with a small size of 1.6 X 0.80 X 0.60 mm, RoHS compliant. 2. Provide low insertion loss and high attenuation. 3. Highly stable under temperature and humidity changes. RF CHARACTERISTICS PN DP2549K0603BT Frequency range VSWR Insertion Loss Attenuation (min.) Operation Tem

DP2549K0603BT Datasheet (184.50 KB)

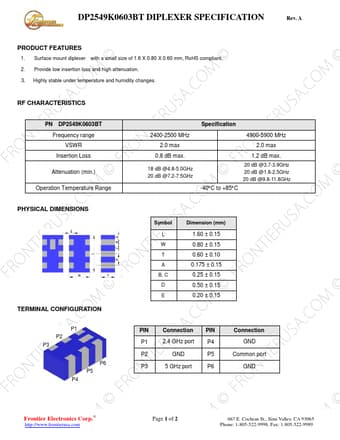

Preview of DP2549K0603BT PDF

Datasheet Details

Part number:

DP2549K0603BT

Manufacturer:

Frontier Electronics

File Size:

184.50 KB

Description:

Diplexer.
