EF1010FCT, EF1005FCT Datasheet - Frontier Electronics

EF1010FCT 10.0A GLASS PASSIVATED EFFCIENCY FAST RECTIFIERS

EF1010FCT Features

* 1. FLAMMABILITY CLASSIFICATION: 94V-0 2. GLASS PASSIVATED CHIP JUNCTION 3. LOW LEAKAGE 4. LOW FORWARD VOLTAGE DROP 5. HIGH SURGE CURRENT CAPABILITY 6. CASE: JEDEC ITO-220AB, MOLDED PLASTIC 7. DIMENSIONS IN INCHES AND (MILLIMETERS) 8. POLARITY: AS MARKED 9. WEIGHT: 1.7 GRAMS 10. LEADS: SOLDERABILITYP

EF1005FCT-FrontierElectronics.pdf

This datasheet PDF includes multiple part numbers: EF1010FCT, EF1005FCT. Please refer to the document for exact specifications by model.

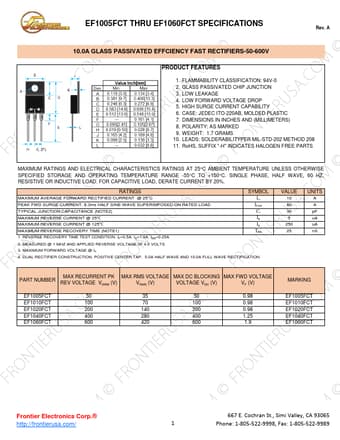

EF1010FCT Datasheet Preview Page 2

Datasheet Details

Part number:

EF1010FCT, EF1005FCT

Manufacturer:

Frontier Electronics

File Size:

1.64 MB

Description:

10.0a glass passivated effciency fast rectifiers.

Note:

This datasheet PDF includes multiple part numbers: EF1010FCT, EF1005FCT.
Please refer to the document for exact specifications by model.
