FFM105-S, FFM101-S - 1A SMD FAST RECOVERY RECTIFIERS

FFM105-S Description

FFM101-S THRU FFM107-S SPECIFICATION Rev.A 1A SMD FAST RECOVERY RECTIFIERS, 50V-1000V PRODUCT .

FFM105-S Features

* 1. FLAMMABILITY CLASSIFICATION 94V-0 2. EXCELLENT REVERSE LEAKAGE CURRENT AND THERMAL RESISTANCE 3. HIGH CURRENT CAPABILITY 4. GLASS PASSIVATED CHIP JUNCTION 5. HIGH SPEED SWITCHING AND HIGH SURGE CAPABILITY 6. CASE: TRANSFER MOLDED, DO-214AC (SMA-S) 7. DIMENSIONS IN INCHES AND (MILLIMETERS) 8. LEAD

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: FFM105-S, FFM101-S. Please refer to the document for exact specifications by model.

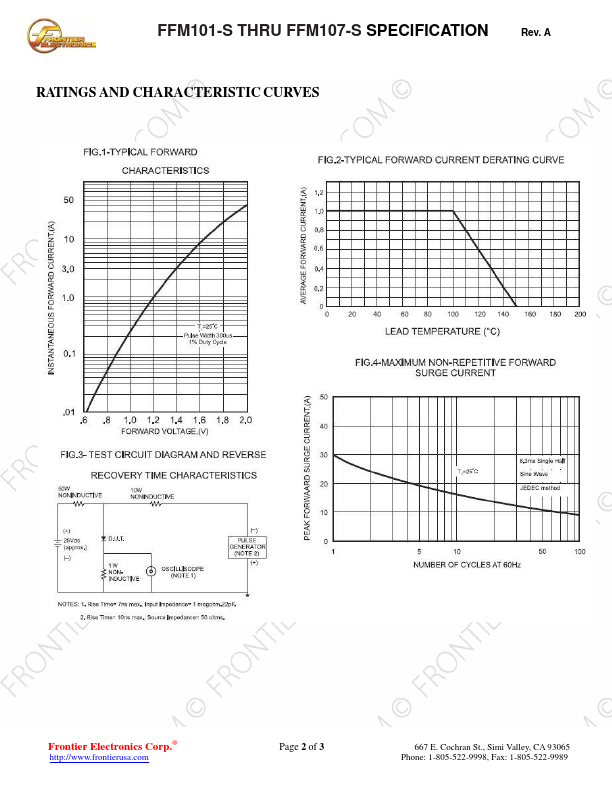

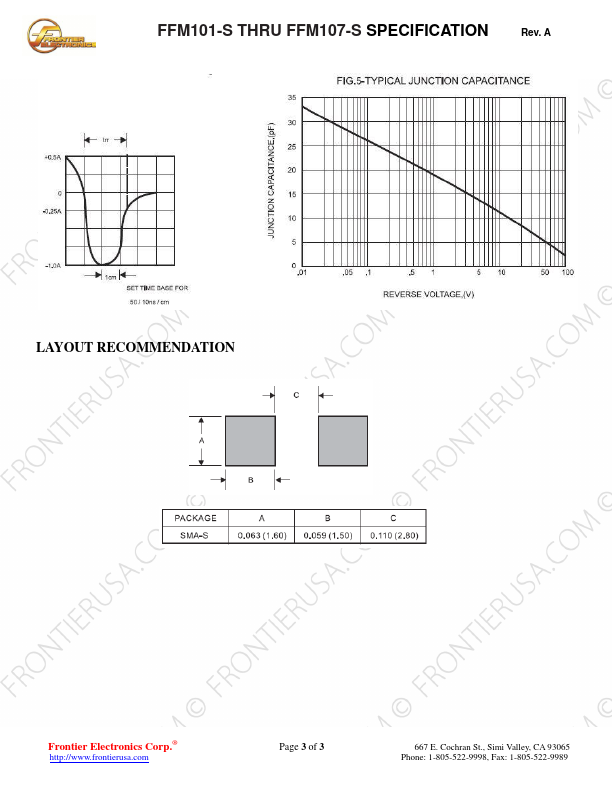

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FFM105-S, FFM101-S
Manufacturer
Frontier Electronics
File Size
546.56 KB
Datasheet
FFM101-S-FrontierElectronics.pdf
Description
1A SMD FAST RECOVERY RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: FFM105-S, FFM101-S.
Please refer to the document for exact specifications by model.
