RS2G, RS2A - 2A FAST RECOVERY SURFACE MOUNT RECTIFIER

RS2G Description

RS2A THRU RS2M SPECIFICATIONS Rev.A 2A FAST RECOVERY SURFACE MOUNT RECTIFIER PRODUCT .

RS2G Features

* 1. FLAMMABILITY CLASSIFICATION: 94V-0 2. GLASS PASSIVATED CHIP JUNCTION 3. BUILT-IN STRAIN RELIEF 4. LOW PROFILE 5. FAST SWITCHING 6. CASE: MOLDED PLASTIC BODY, DO-214AA (SMB) 7. DIMENSIONS IN INCHES AND (MILLIMETERS) 8. POLARITY: INDICATED BY CATHODE BAND 9. WEIGHT : 0.093 GRAMS 10. RoHS MAXIMUM R

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RS2G, RS2A. Please refer to the document for exact specifications by model.

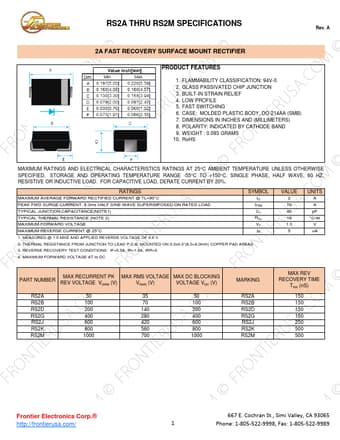

datasheet Preview Page 2

Datasheet Details

Part number
RS2G, RS2A
Manufacturer
Frontier Electronics
File Size
850.06 KB
Datasheet
RS2A-FrontierElectronics.pdf
Description
2A FAST RECOVERY SURFACE MOUNT RECTIFIER
Note
This datasheet PDF includes multiple part numbers: RS2G, RS2A.
Please refer to the document for exact specifications by model.
