SS18, SS12 1A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS

SS18 Description

FRONTIER ELECTRONICS CO., LTD.1A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS SS12 THRU SS110 .

SS18 Features

* ! EXTREMELY LOW VF ! LOW STORED CHARGE, MAJORITY CARRIER CONDUCTION ! LOW POWER LOSS / HIGH EFFICIENCY ! UL 94V-0 FLAME RETARDANT EPOXY MOLDING COMPOUND MECHANICAL DATA ! CASE：TRANSFER MOLDED ! TERMINALS：SOLDERABLE PER MIL-STD-750, METHOD 2026 ! POLARITY：CATHODE INDICATED BY COLOR BAND ! WEIGHT：0.06

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SS18, SS12. Please refer to the document for exact specifications by model.

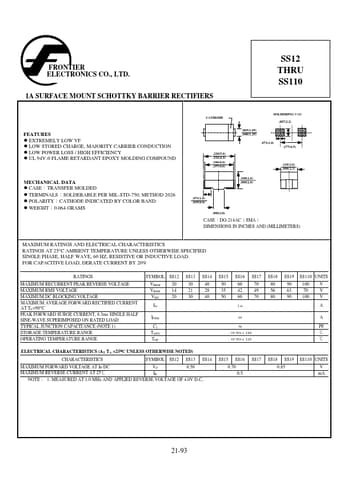

datasheet Preview Page 2

Datasheet Details

Part number
SS18, SS12
Manufacturer
Frontier Electronics
File Size
62.74 KB
Datasheet
SS12-FrontierElectronics.pdf
Description
1A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: SS18, SS12.
Please refer to the document for exact specifications by model.
