FM24C08 Datasheet - Fudan

FM24C08 2-Wire Serial EEPROM

The FM24C02/04/08/16 provides 2048/4096/8192/16384 bits of serial electrically erasable and programmable read-only memory (EEPROM) organized as 256/512/1024/2048 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage opera.

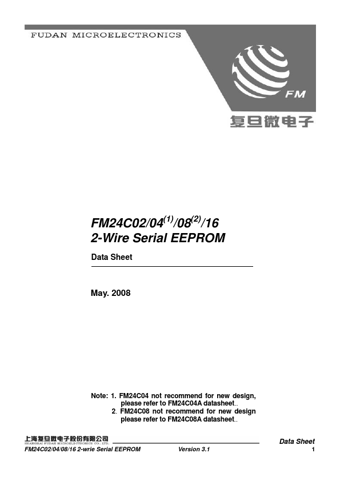

FM24C02/04(1)/08(2)/16 2-Wire Serial EEPROM Data Sheet May. 2008 Note: 1. FM24C04 not recommend for new design, please refer to FM24C04A datasheet.. 2. FM24C08 not recommend for new design please refer to FM24C08A datasheet.. Data Sheet FM24C02/04/08/16 2-wrie Serial EEPROM Version 3.1 1 INFORMATION IN THIS DOCUMENT IS INTENDED AS A REFERENCE TO ASSIST OUR CUSTOMERS IN THE SELECTION OF SHANGHAI FUDAN MICROELECTRONICS CO., LTD PRODUCT BEST SUITED TO THE CUSTOMER'S APPLICATION; THEY DO NOT CONV.

FM24C08 Features

* z Operation Voltage: 2.2V to 5.5V z Internally Organized: 256 x 8 (2K), 512 x 8 (4K), 1024 x 8 (8K) or 2048 x 8 (16K) z 2-wire Serial Interface z Schmitt Trigger, Filtered Inputs for Noise Suppression z Bi-directional Data Transfer Protocol z 100 kHz (2.2V) and 400 kHz (5V) Compatibility z Write Pro

FM24C08 Datasheet (465.33 KB)
