1MBI600V-170-50 IGBT

Fuji Electric

Description

1MBI600V-170-50 Power Module (V series) 1700V / 600A / 1-in-one package * .

📥 Download Datasheet

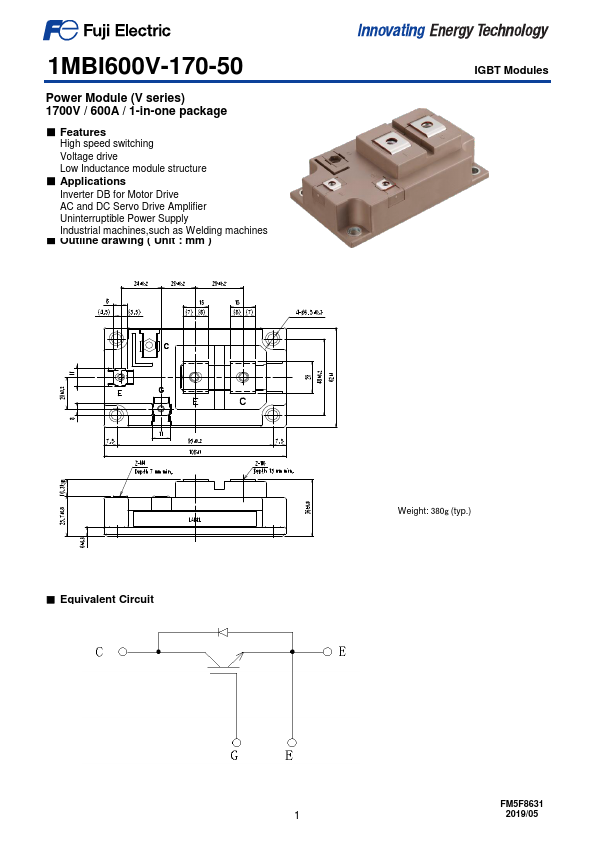

1MBI600V-170-50 Datasheet Preview — Preview of 1MBI600V-170-50 PDF

Datasheet Specifications

Part number: 1MBI600V-170-50
Manufacturer: Fuji Electric
File Size: 403.18 KB
Datasheet: 1MBI600V-170-50-FujiElectric.pdf
Description: IGBT

Features

* High speed switching Voltage drive Low Inductance module structure

Applications

* Inverter DB for Motor Drive AC and DC Servo Drive Amplifier Uninterruptible Power Supply Industrial machines,such as Welding machines
* Outline drawing ( Unit : mm ) IGBT Modules
* Equivalent Circuit Weight: 380g (typ. ) FM5F8631 1 2019/05 1MBI600V-170-50 IGBT Modules
* Absolute
