2MBI300XNA120-50 - IGBT

Features

s Low V CE(sat) Low Inductance Module structure Solder pin terminals.

2MBI300XNA120-50 IGBT by Fuji Electric - Datasheet Preview — Datasheet preview – 2MBI300XNA120-50

Datasheet Details

Part number	2MBI300XNA120-50
Manufacturer	Fuji Electric
File Size	1.10 MB
Description	IGBT
Datasheet	2MBI300XNA120-50 Datasheet

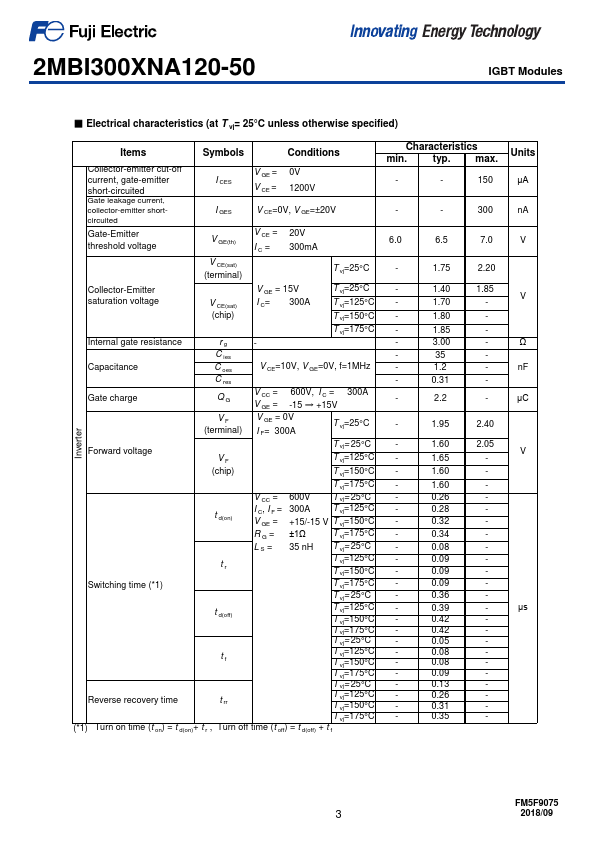

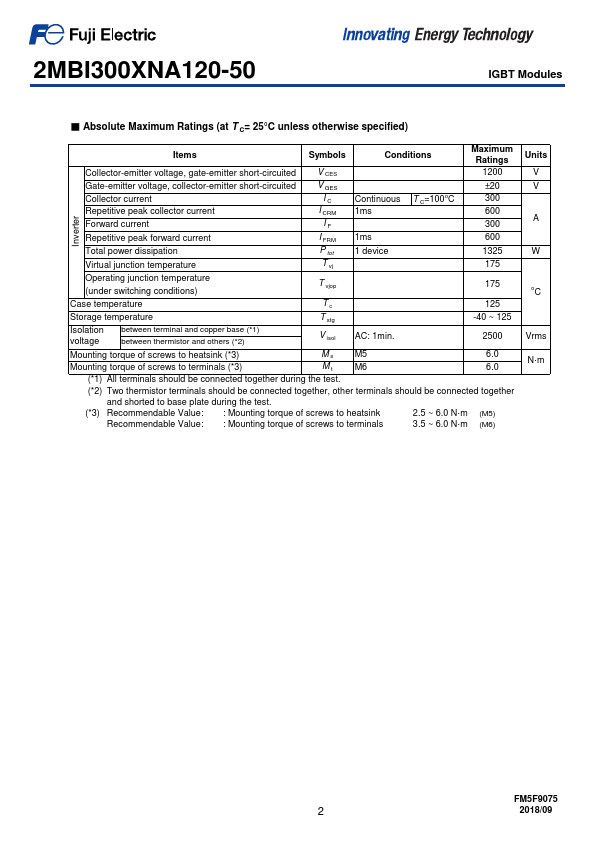

Additional preview pages of the 2MBI300XNA120-50 datasheet.

📁 Similar Datasheet

2MBI300XBE065-50 - IGBT Modules (Fuji)
2MBI300F-060 - IGBT (Fuji)
2MBI300J-060 - IGBT (Fuji)
2MBI300L-060 - IGBT (Fuji)
2MBI300LB-060 - IGBT (Fuji)
2MBI300N-060 - IGBT (Fuji)
2MBI300N-060-04 - IGBT Module (Fuji)
2MBI300N-120 - IGBT (Fuji)
2MBI300N-120-01 - IGBT (Fuji)
2MBI300NB-060 - IGBT (Fuji)

Other Datasheets by Fuji Electric

Full PDF Text Transcription

Click to expand full text

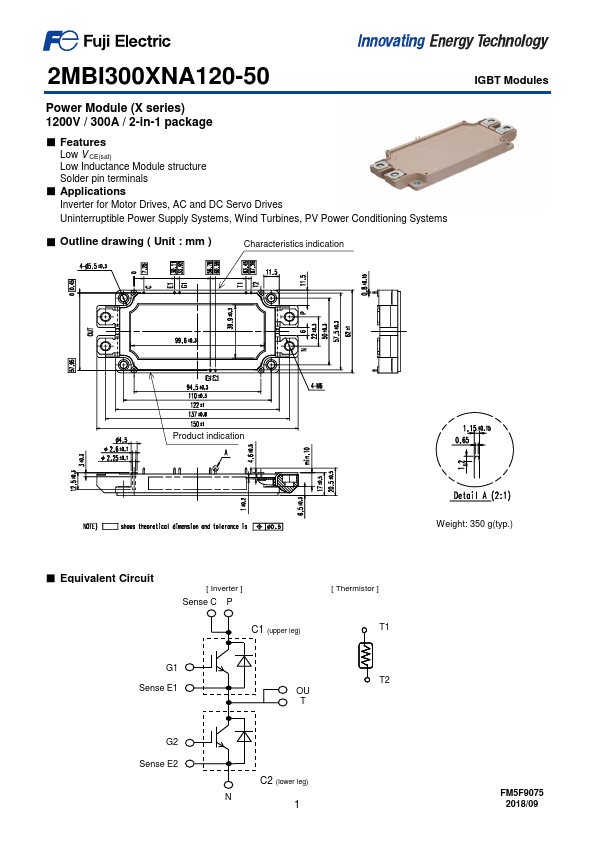

2MBI300XNA120-50 Power Module (X series) 1200V / 300A / 2-in-1 package ■ Features Low V CE(sat) Low Inductance Module structure Solder pin terminals ■ Applications Inverter for Motor Drives, AC and DC Servo Drives Uninterruptible Power Supply Systems, Wind Turbines, PV Power Conditioning Systems ■ Outline drawing ( Unit : mm ) Characteristics indication IGBT Modules Product indication Weight: 350 g(typ.
