2MBI600XDE065-50 IGBT

Fuji Electric

Description

2MBI600XDE065-50 Power Module (X series) 650V / 600A / 2-in-1 package * .

📥 Download Datasheet

2MBI600XDE065-50 Datasheet Preview — Preview of 2MBI600XDE065-50 PDF

Datasheet Specifications

Part number: 2MBI600XDE065-50
Manufacturer: Fuji Electric
File Size: 648.92 KB
Datasheet: 2MBI600XDE065-50-FujiElectric.pdf
Description: IGBT

Features

* Low V CE(sat) High speed switching Low Inductance Module structure

Applications

* Inverter for Motor Drives, AC and DC Servo Drives Uniterruptible Power Supply Systems, Industrial machines,such as Welding machines

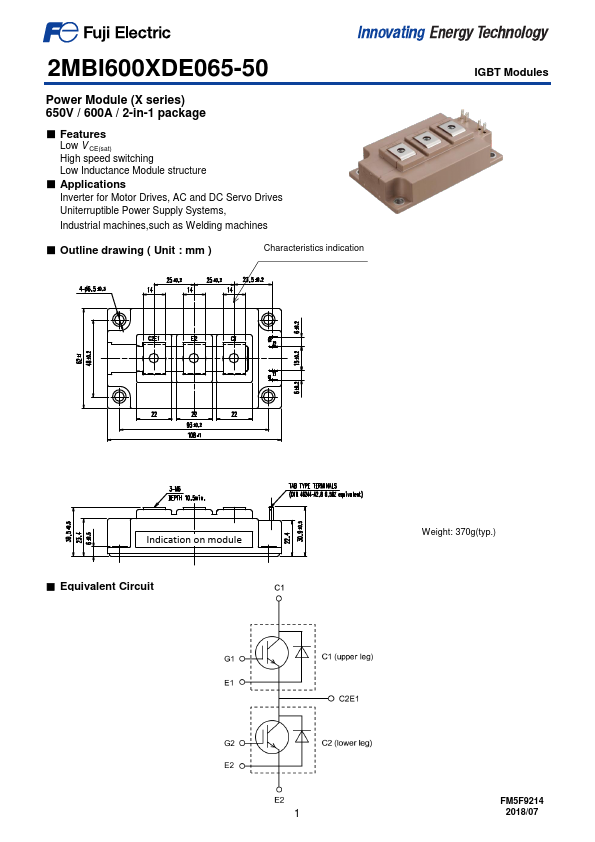

* Outline drawing ( Unit : mm ) Characteristics indication IGBT Modules Indication on module
* Equivalent Circuit Weight: 370g(typ. ) FM5F9214 1 2018/07

2MBI600XDE065-50 Distributors
