2SK1821-01M Datasheet, Mos-fet, Fuji Electric

2SK1821-01M Features

  • Mos-fet High Speed Switching Low On-Resistance No Secondary Breakdown Low Driving Power High Voltage VGS = ± 30V Guarantee Avalanche Proof N-channel MOS-FET 600V 6,5Ω 2A 30W > Outline Draw

PDF File Details

Part number:

2SK1821-01M

Manufacturer:

Fuji Electric

File Size:

157.00kb

Download:

📄 Datasheet

Description:

N-channel mos-fet.

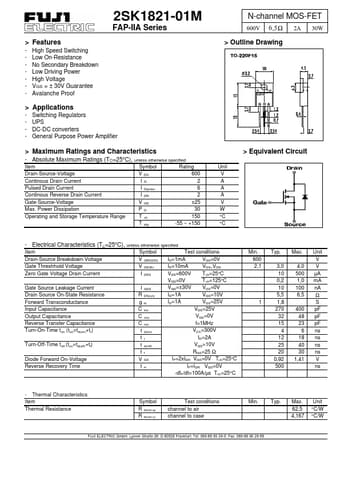

Datasheet Preview: 2SK1821-01M 📥 Download PDF (157.00kb)
Page 2 of 2SK1821-01M

2SK1821-01M Application

  • Applications Switching Regulators UPS DC-DC converters General Purpose Power Amplifier > Maximum Ratings and Characteristics - Absolute Maximum Rat
