7MBR150XNA065-50 IGBT

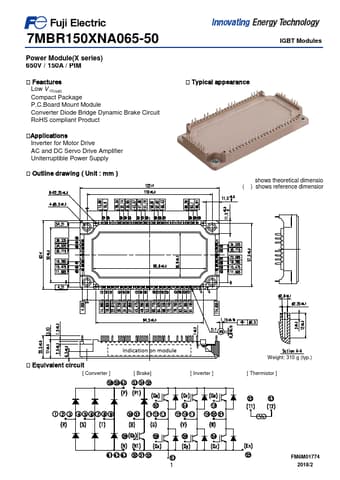

7MBR150XNA065-50 Power Module(X series) 650V / 150A / PIM Feactures Low V CE(sat) Compact Package P.C.Board Mount Module Converter Diode Bridge Dynamic Brake Circuit RoHS compliant Product Applications Inverter for Motor Drive AC and DC Servo Drive Amplifier Uniterruptible Power Supply Outline drawing ( Unit : mm ) IGBT Modules Typical appearance shows theoretical dimensio ( ) shows reference dimension Equivalent circuit [ Converter ] Indication on module [ Brake].
