7MBR20XKC065-50 IGBT

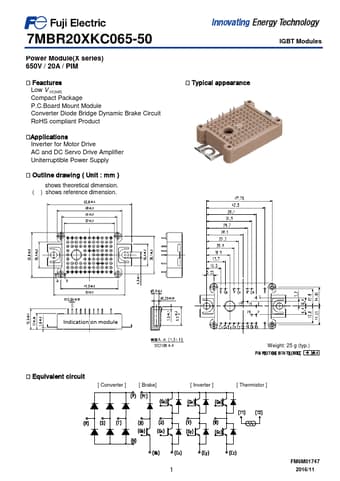

7MBR20XKC065-50 Power Module(X series) 650V / 20A / PIM Feactures Low V CE(sat) Compact Package P.C.Board Mount Module Converter Diode Bridge Dynamic Brake Circuit RoHS compliant Product Applications Inverter for Motor Drive AC and DC Servo Drive Amplifier Uniterruptible Power Supply Outline drawing ( Unit : mm ) shows theoretical dimension. ( ) shows reference dimension. Typical appearance IGBT Modules Indication on module Equivalent circuit [ Converter ] [ Br.
