7MBR30NE060 - IGBT

Datasheet Summary

Features

High Speed Switching.
Voltage Drive.
Low Inductance Module Structure.
Converter Diode Bridge Dynamic Brake Circuit.

Fuji Electric

📥 Download Datasheet

Datasheet Details

Part number	7MBR30NE060
Manufacturer	Fuji Electric
File Size	322.07 KB
Description	IGBT
Datasheet	7MBR30NE060 Datasheet
Additional preview pages of the 7MBR30NE060 datasheet.

📁 Similar Datasheet

7MBR30U2A060-50 - Power Devices (IGBT) (ETC)
7MBR30VKC060-50 - IGBT (Fuji)
7MBR35UA120-50 - Power Devices (IGBT) (ETC)
7MBR100U2B060-50 - Power Devices (IGBT) (ETC)
7MBR100U4B120-50 - Power Devices (IGBT) (ETC)
7MBR15VJA120-53 - IGBT (Fuji)
7MBR25LC120 - Inverter Module (Fuji Semiconductors)
7MBR25UA120-50 - Power Devices (IGBT) (ETC)
7MBR50SC060 - PIM/Built-in converter (ETC)
7MBR50U2A060-50 - Power Devices (IGBT) (ETC)

Other Datasheets by Fuji Electric

7MBR30NF060 - IGBT
7MBR30SA060 - IGBT
7MBR30SA060-50 - Power Integrated Module
7MBR30SA060E-01 - IGBT
7MBR30SC060 - PIM/Built-in converter
7MBR30U2A060 - IGBT
7MBR30VKA060-50 - 600V 30A IGBT
7MBR30XKC065-50 - IGBT

Full PDF Text Transcription

Click to expand full text

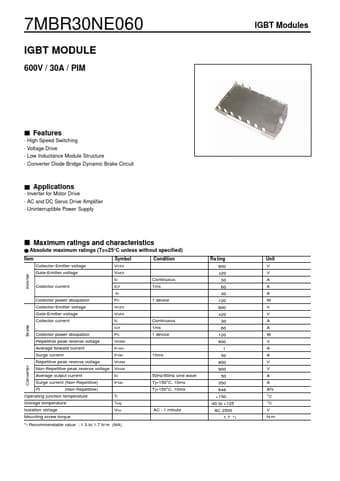

7MBR30NE060 IGBT MODULE 600V / 30A / PIM IGBT Modules Features · High Speed Switching · Voltage Drive · Low Inductance Module Structure · Converter Diode Bridge Dynamic Brake Circuit Applications · Inverter for Motor Drive · AC and DC Servo Drive Amplifier · Uninterruptible Power Supply Maximum ratings and characteristics Absolute maximum ratings (Tc=25°C unless without specified) Item Symbol VCES VGES IC Collector current ICP -IC Collector power disspation PC Collector-Emitter voltage VCES Gate-Emitter voltage VGES Collector current IC ICP Collector power disspation PC Repetitive peak reverse voltage VRRM Average forward current IF(AV) Surge current IFSM Repetitive peak reverse voltage VRRM Non-Repetitive peak reverse voltage VRSM Average output current IO Surge current (Non-Repetitiv
