FA3635P Datasheet, Control, Fuji Electric

FA3635P Features

  • Control
  • Built-in low on-resistance Pch power MOSFET 50V/1.1Ω(typ.)/1A(peak)
  • Wide range of 10V to 50V for input voltage
  • 1.2mA low operating current as a Power IC

PDF File Details

Part number:

FA3635P

Manufacturer:

Fuji Electric

File Size:

37.87kb

Download:

📄 Datasheet

Description:

For switching power supply control. FA3635P is a CMOS IC which includes low on-resistance power MOSFET for PWM-type switching power supply control. This IC achieves high

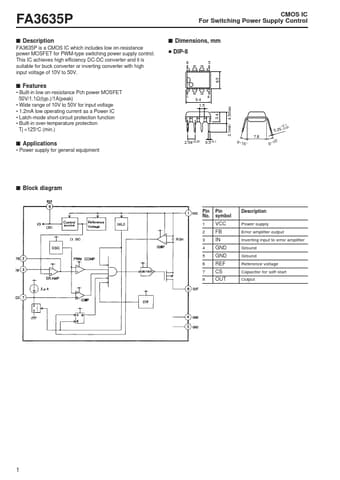

Datasheet Preview: FA3635P 📥 Download PDF (37.87kb)
Page 2 of FA3635P Page 3 of FA3635P

FA3635P Application

  • Applications
  • Power supply for general equipment 2.54±0.25 0.5±0.1 0~15 ˚ 0~1 5˚ s Block diagram Pin No. 1 2 3 4 5 6 7 8 Pin symbo
