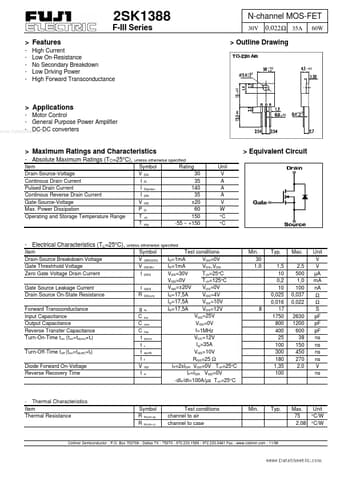

K1388
Features
High Current Low On-Resistance No Secondary Breakdown Low Driving Power High Forward Transconductance
N-channel MOS-FET
30V
0,022Ω 35A
60W
> Outline Drawing
> Applications
- Motor Control
- General Purpose Power Amplifier
- DC-DC converters ..
> Maximum Ratings and Characteristics
- Absolute Maximum Ratings (TC=25°C), unless otherwise specified
Item Drain-Source-Voltage Continous Drain Current Pulsed Drain Current Continous Reverse Drain Current Gate-Source-Voltage Max. Power Dissipation Operating and Storage Temperature Range Symbol V DS ID I D(puls) I DR V GS PD T ch T stg Rating 30 35 140 35 ±20 60 150 -55 ~ +150 Unit V A A A V W °C °C
> Equivalent Circuit
- Electrical Characteristics (TC=25°C), unless otherwise specified
Item Drain-Source Breakdown-Voltage Gate Threshhold Voltage Zero Gate Voltage Drain Current Gate Source Leakage Current Drain Source On-State Resistance Forward Transconductance Input Capacitance Output Capacitance Reverse Transfer Capacitance...
