Part number: K3603-01MR
Manufacturer: Fuji Electric
File Size: 126.56KB
Download: 📄 Datasheet

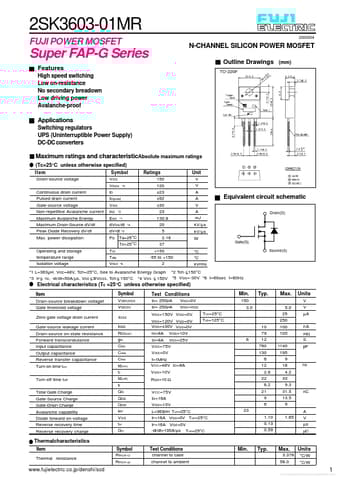

Description: 2SK3603-01MR
High speed switching Low on-resistance No secondary breadown Low driving power Avalanche-proof
N-CHANNEL SILICON POWER MOSFET
Outline Drawings (mm)
TO-220F
Applications.
Switching regulators UPS (Uninterruptible Power Supply) DC-DC converters
Maximum ratings and characteristicAbsolute max.
