* Surface mount device Low VF Super high speed switching High reliability by planer design JEDEC EIAJ 1. Gate 2, 4. Drain 3. Source Connection diagram Applications High speed power switching 1 2 4 3 Maximum ratings and characteristics Absolute maximum ratings Item Repetitive peak reverse voltage
KS823C09
Fuji Electric
49.54 KB
Schottky barrier diode.

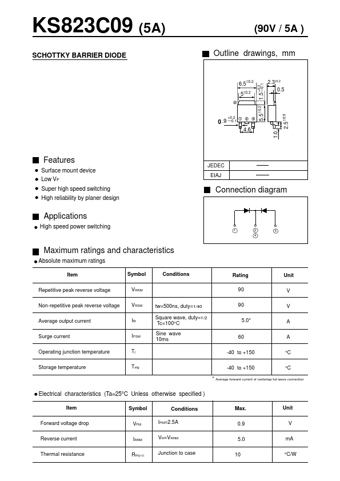

KS823C09 (5A)
SCHOTTKY BARRIER DIODE
6.5
±0.2
(90V / 5A )
Outline drawings, mm
1.5
*0.1
+0.2
2.3±0.2 0.5
5±0.2
5.5 ±0.2
0 .9
*0.
