2MBI100P-140 IGBT

Fuji

2MBI100P-140 Description

2MBI 100P-140 IGBT MODULE ( P-Series ) n .

2MBI100P-140 Features

* Square SC SOA at 10 x IC
* Simplified Parallel Connection
* Narrow Distribution of Characteristics

2MBI100P-140 Applications

* High Power Switching
* A. C. Motor Controls
* D. C. Motor Controls
* Uninterruptible Power Supply n Maximum Ratings and Characteristics
* Absolute Maximum Ratings Items Collector-Emitter Voltage Gate -Emitter Voltage ( Tc=25°C) Symbols VCES VGES Continuous TC

📥 Download Datasheet

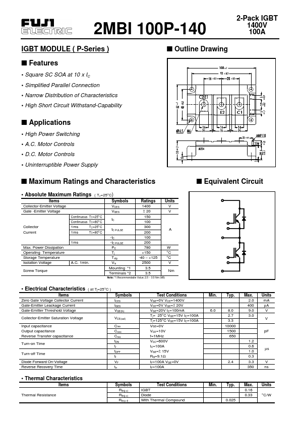

2MBI100P-140 Datasheet Preview — Preview of 2MBI100P-140 PDF

Datasheet Details

Part number: 2MBI100P-140
Manufacturer: Fuji
File Size: 219.98 KB
Datasheet: 2MBI100P-140_FujiElectric.pdf
Description: IGBT
