FA6A30N - Current resonant controller

Fuji

The FA6A30N by Fuji is a Current resonant controller. Below is the official datasheet preview.

📥 Download Datasheet

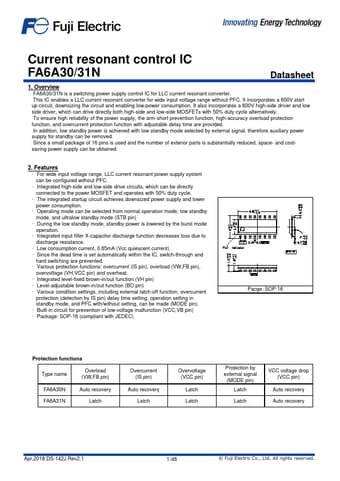

FA6A30N Current resonant controller by Fuji - Datasheet Preview — Official preview page of the **FA6A30N** Current resonant controller datasheet (Fuji).

Datasheet Details

Part number	FA6A30N
Manufacturer	Fuji
File Size	0.98 MB
Description	Current resonant controller
Datasheet	FA6A30N-FujiElectric.pdf
Additional preview pages of the FA6A30N datasheet.

FA6A30N Product details

Description

of pins Pin No.Pin name 1 VH I/O Description I High voltage input Note 2 2 （NC） - (No connection) 3 3 BO I/O Brown-in/out setting 1, 2 4 FB I/O Feedback input 1, 2 5 CS I/O Soft start and soft end 1 6 STB I/O Standby signal input 1, 2 7 MODE I/O Operating mode setting and Delay time for over current protection 1, 2 8 IS I Current detection 1, 2 9 VW I Winding voltage detection 2 10 VCC

Features

For wide input voltage range, LLC current resonant power supply system can be configured without PFC. Integrated high-side and low-side drive circuits, which can be directly connected to the power MOSFET and operates with 50% duty cycle. The integrated startup circuit achieves downsized power supply and lower power consumption. Operating mode can be selected from normal operation mode, low standby mode, and ultralow standby mode (STB pin) During the low standby mode, standby power is lowered by.
