MB40178 Datasheet - Fujitsu Media Devices Limited

MB40178 - (MB40168) Single Chip 8-Bit A/D and 9-Bit D/A Converter

The Fujitsu MB40168 and MB40178 are high speed, low power single chip A/D and D/A converters designed for video processing applications. The A/D converter has a resolution of 8 bits while the D/A converter has 9bit resolution. They are fabricated in Fujitsu’s advanced bipolar technology, and housed .

MB40178 Features

* Resolution

* A/D: 8 bits D/A: 9 bits Conversion Rate A/D: Max. 20 MSPS D/A: Max. 40 MSPS Linearity Error A/D: Max. + 0.3% D/A: Max. + 0.2% On-chip reference voltage generator (resistor divided method) and clamp circuit Analog Input Voltage 3

MB40178_FujitsuMediaDevicesLimited.pdf

Preview of MB40178 PDF

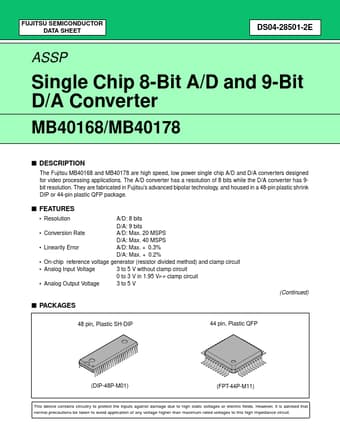

MB40178 Datasheet Preview Page 2 MB40178 Datasheet Preview Page 3

Datasheet Details

Part number:

MB40178

Manufacturer:

Fujitsu Media Devices Limited

File Size:

687.68 KB

Description:

(mb40168) single chip 8-bit a/d and 9-bit d/a converter.
