FPT-20P-M04 - THIN SHRINK SMALL OUTLINE PACKAGE

📥 Download Datasheet

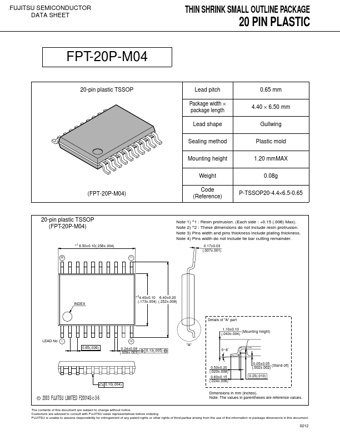

Datasheet preview – FPT-20P-M04

Datasheet Details

Part number FPT-20P-M04
Manufacturer Fujitsu Media Devices
File Size 53.73 KB
Description THIN SHRINK SMALL OUTLINE PACKAGE
Datasheet download datasheet FPT-20P-M04 Datasheet
Additional preview pages of the FPT-20P-M04 datasheet.

📁 Similar Datasheet

  • FPT100 - General Purpose Silicon Planar Phototransistor (Fairchild Semiconductor)
  • FPT100A - General Purpose Silicon Planar Phototransistor (Fairchild Semiconductor)
  • FPT100B - General Purpose Silicon Planar Phototransistor (Fairchild Semiconductor)
  • FPT101 - Hermetic Coaxial Silicon Phototransistor (Fairchild Semiconductor)
  • FPT102 - Hermetic Coaxial Silicon Photodiode (Fairchild Semiconductor)
  • FPT110 - General Purpose Silicon Planar Phototransistor (Fairchild Semiconductor)
  • FPT110A - General Purpose Silicon Planar Phototransistor (Fairchild Semiconductor)
  • FPT110B - General Purpose Silicon Planar Phototransistor (Fairchild Semiconductor)
  • FPT120 - High Sensitivity Silicon Phototransistors (Fairchild Semiconductor)
  • FPT120A - High Sensitivity Silicon Phototransistors (Fairchild Semiconductor)
Other Datasheets by Fujitsu Media Devices

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com FUJITSU SEMICONDUCTOR DATA SHEET THIN SHRINK SMALL OUTLINE PACKAGE 20 PIN PLASTIC FPT-20P-M04 20-pin plastic TSSOP Lead pitch Package width × package length Lead shape Sealing method Mounting height Weight 0.65 mm 4.40 × 6.50 mm Gullwing Plastic mold 1.20 mmMAX 0.08g P-TSSOP20-4.4×6.5-0.65 (FPT-20P-M04) Code (Reference) 20-pin plastic TSSOP (FPT-20P-M04) Note 1) *1 : Resin protrusion. (Each side : +0.15 (.006) Max). Note 2) *2 : These dimensions do not include resin protrusion. Note 3) Pins width and pins thickness include plating thickness. Note 4) Pins width do not include tie bar cutting remainder. 0.17±0.03 (.007±.001) 11 *1 6.50±0.10(.256±.004) 20 *24.40±0.10 INDEX 6.40±0.20 (.173±.004) (.252±.008) Details of "A" part 1.10±0.10 (Mounting height) (.043±.
