FTP-622 (FTP-6x2) 24V DRIVE INTERFACE BOARD

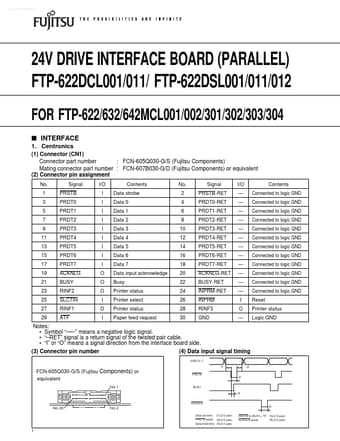

www.DataSheet4U.com 24V DRIVE INTERFACE BOARD (PARALLEL) FTP-622DCL001/011/ FTP-622DSL001/011/012 FOR FTP-622/632/642MCL001/002/301/302/303/304 s INTERFACE 1. Centronics (1) Connector (CN1) Connector part number : FCN-605Q030-G/S (Fujitsu Components) Mating connector part number : FCN-607B030-G/D (Fujitsu Components) or equivalent (2) Connector pin assignment No. 1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 Signal PRSTB PRDT0 PRDT1 PRDT2 PRDT3 PRDT4 PRDT5 PRDT6 PRDT7 ACKNLG BUSY RINF2 SLCTIN RINF1 A.
