MB89135

(MB89130 - MB89135) 8-bit Proprietary Microcontroller

MB89135 Features

* F2MC-8L family CPU core Low-voltage operation (when an A/D converter is not used) Low current consumption (applicable to the dual-clock system) Minimum execution time : 0.95 µs at 4.2 MHz 21-bit timebase timer

MB89135 General Description

The MB89130/130A series has been developed as a general-purpose version of the F2MC
*-8L family consisting of proprietary 8-bit, single-chip microcontrollers. In addition to a compact instruction set, the microcontrollers contain a great variety of peripheral functions such as timers, a serial in.

MB89135 Datasheet (738.25 KB)

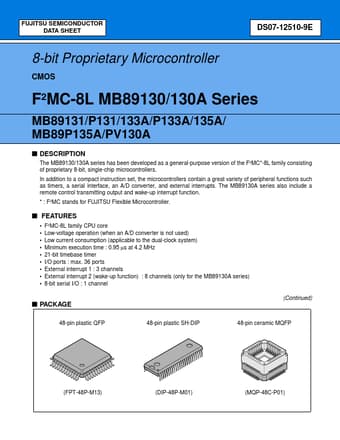

Preview of MB89135 PDF

Datasheet Details

Part number:

MB89135

Manufacturer:

Fujitsu Media Devices

File Size:

738.25 KB

Description:

(mb89130 - mb89135) 8-bit proprietary microcontroller.
FUJITSU SEMICONDUCTOR DATA SHEET DS07-12510-9E 8-bit Proprietary Microcontroller CMOS F2MC-8L MB89130/130A Series MB89131/P131/133A/P133A/135A/ MB8.
