MB89R112 High-speed RFID LSI

MB89R112 Description

FUJITSU SEMICONDUCTOR DATA SHEET DS411-00004-0v01-E ASSP ISO/IEC 15693 Compliant FRAM Embedded High-speed RFID LSI TM MB89R112 * DESCRIPTIO.
The MB89R112 is an LSI device that has built-in high-speed, large-capacity FRAM and is used for vicinityRFID.

MB89R112 Features

* Memory capacity of 9 Kbytes FRAM (including 8192 bytes of user area)
* 32-byte/block configuration, 256 blocks
* High-speed data transmission and reception at 26.48 kbps
* Fast command supported (data transmission at 52.97 kbps) (Transponder → Reader/Writer)

📥 Download Datasheet

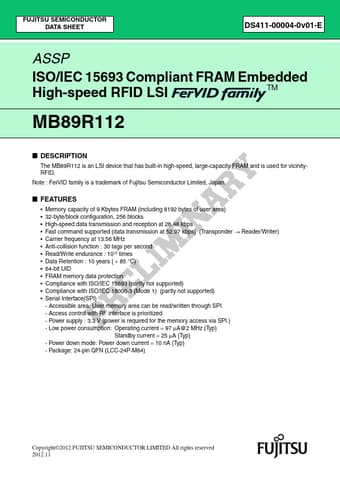

Preview of MB89R112 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MB89R112
Manufacturer
Fujitsu Media Devices
File Size
1.50 MB
Datasheet
MB89R112-FujitsuMediaDevices.pdf
Description
High-speed RFID LSI
