MB90098A Datasheet - Fujitsu Media Devices

On-Screen Display Controller

MB90098A Features

* Main screen display capacity

* Character configuration Maximum 32 characters × 16 rows L size : 24 dots (h) × 2h

* dots (v) M size : 18 dots (h) × 2h

* dots (v) S size : 12 dots (h) × 2h

* dots (v)

* : h = 9 to 16 L, M, S sizes can be selected by character h can be set

MB90098A General Description

The FUJITSU MB90098A on-screen display controller is designed for use with LCD monitors, operates at a maximum dot clock frequency of 140 MHz, and provides demultiplexed output (2-pixel parallel output) . The maximum display screen configuration is 32 characters × 16 rows, with a maximum resolution .

MB90098A Datasheet (1.85 MB)

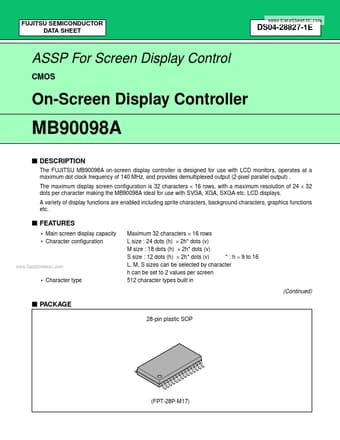

MB90098A Datasheet Preview — Preview of MB90098A PDF

Datasheet Details

Part number:

MB90098A

Manufacturer:

Fujitsu Media Devices

File Size:

1.85 MB

Description:

On-screen display controller.
