MB90F439

(MB90435 - MB90540) 16-bit Proprietary Microcontroller

MB90F439 Features

* Clock Embedded PLL clock multiplication circuit Operating clock (PLL clock) can be selected from : divided-by-2 of oscillation or one to four times the oscillation Minimum instruction execution time : 62.5 ns (operation at oscillation of 4 MHz, four times the oscillation clock, VCC of 5.0

MB90F439 General Description

The MB90435 series with FLASH ROM is specially designed for industrial applications. The instruction set by F2MC-16LX CPU core inherits an AT architecture of the F2MC
* family with additional instruction sets for high-level languages, extended addressing mode, enhanced multiplication/division ins.

MB90F439 Datasheet (629.88 KB)

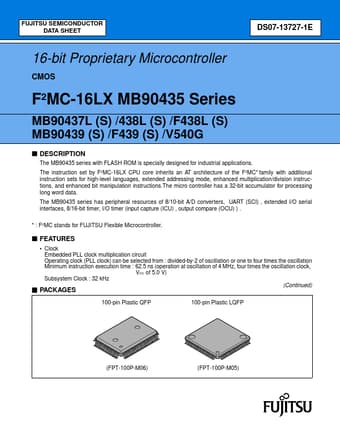

Preview of MB90F439 PDF

Datasheet Details

Part number:

MB90F439

Manufacturer:

Fujitsu Media Devices

File Size:

629.88 KB

Description:

(mb90435 - mb90540) 16-bit proprietary microcontroller.
FUJITSU SEMICONDUCTOR DATA SHEET DS07-13727-1E 16-bit Proprietary Microcontroller CMOS F2MC-16LX MB90435 Series MB90437L (S) /438L (S) /F438L (S) M.
