MBM29DL400TC Datasheet - Fujitsu Media Devices

4M (512K X 8/256K X 16) BIT

MBM29DL400TC Features

* Single 3.0 V read, program, and erase Minimizes system level power requirements

* Simultaneous operations Read-while-Erase or Read-while-Program

* Compatible with JEDEC-standard commands Uses same software commands as E2PROMs

* Compatible with JEDEC-standard world-w

MBM29DL400TC General Description

The MBM29DL400TC/BC are a 4M-bit, 3.0 V-only Flash memory organized as 512K bytes of 8 bits each or 256K words of 16 bits each. The MBM29DL400TC/BC are offered in a 48-pin TSOP(I) package. These devices are designed to be programmed in-system with the standard system 3.0 V VCC supply. 12.0 V VPP and.

MBM29DL400TC Datasheet (551.75 KB)

Preview of MBM29DL400TC PDF

Datasheet Details

Part number:

MBM29DL400TC

Manufacturer:

Fujitsu Media Devices

File Size:

551.75 KB

Description:

4m (512k x 8/256k x 16) bit.

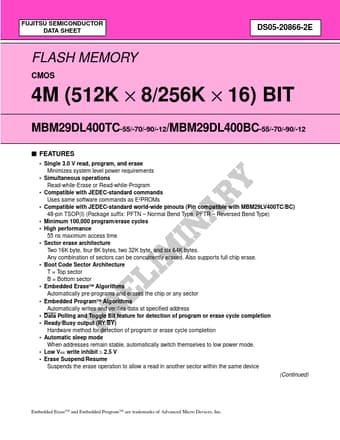

FUJITSU SEMICONDUCTOR DATA SHEET DS05-20866-2E FLASH MEMORY CMOS 4M (512K × 8/256K × 16) BIT MBM29DL400TC-55/-70/-90/-12/MBM29DL400BC-55/-70/-90/-1.
