MBM29F800BA, MBM29F800TA Datasheet - Fujitsu Media Devices

MBM29F800BA 8M (1M x 8/512K x 16) BIT FLASH MEMORY

The MBM29F800TA/BA is a 8M-bit, 5.0 V-only Flash memory organized as 1M bytes of 8 bits each or 512K words of 16 bits each. The MBM29F800TA/BA is offered in a 48-pin TSOP(I) and 44-pin SOP packages. This device is designed to be programmed in-system with the standard system 5.0 V VCC supply. 12.0 V .

MBM29F800BA Features

* Single 5.0 V read, write, and erase Minimizes system level power requirements

* Compatible with JEDEC-standard commands Uses same software commands as E2PROMs

* Compatible with JEDEC-standard world-wide pinouts 48-pin TSOP(I) (Package suffix: PFTN

* Normal Bend Type

MBM29F800TA_FujitsuMediaDevices.pdf

This datasheet PDF includes multiple part numbers: MBM29F800BA, MBM29F800TA. Please refer to the document for exact specifications by model.

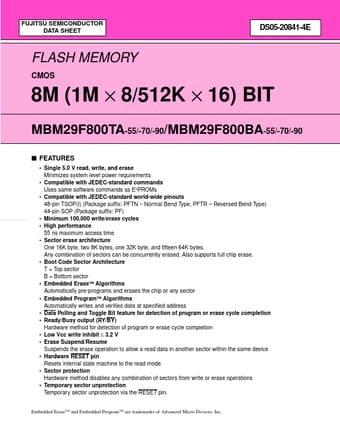

MBM29F800BA Datasheet Preview Page 2 MBM29F800BA Datasheet Preview Page 3

Datasheet Details

Part number:

MBM29F800BA, MBM29F800TA

Manufacturer:

Fujitsu Media Devices

File Size:

543.61 KB

Description:

8m (1m x 8/512k x 16) bit flash memory.

Note:

This datasheet PDF includes multiple part numbers: MBM29F800BA, MBM29F800TA.
Please refer to the document for exact specifications by model.
