MB501SL Super Low Power 2 Modulus Prescaler

Pin Number 1 2 3 4 5 6 7 8 Symbol IN VCC SW OUT GND MC NC IN Input Power Supply, +5V Divide Ratio Control Input (See Divide Ratio Table) Output Ground Modulus Control Input (See Divide Ratio Table) Non Connection Complementary Input Description 2 MB501SL RECOMMENDED OPERATING CONDITIONS Values Pa.
Sept. 1995 Edition 3.0a MB501SLet e h SUPERS LOW POWER TWO MODULUS PRESCALER a t a D SUPER . LOW POWER TWO MODULUS PRESCALER w w w The Fujitsu MB501SL is a super low power version of the MB501 two modulus prescaler used with a frequency synthesizer to make a Phase Locked Loop (PLL). It divides the input frequency by the modulus of 64/65 or 128/129, respectively. The MB501SL achieves extremely small stray capacitance by the use of Fujitsu’s Advanced Process Technology. High speed operation is ac.

MB501SL_Fujitsu.pdf

Preview of MB501SL PDF

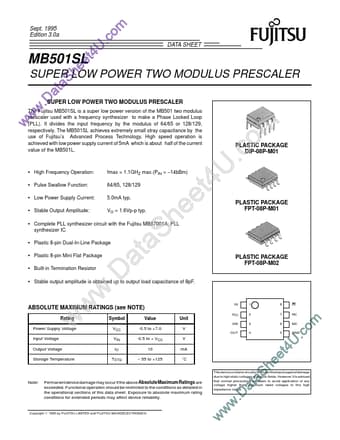

MB501SL Datasheet Preview Page 2 MB501SL Datasheet Preview Page 3

Datasheet Details

Part number:

MB501SL

Manufacturer:

Fujitsu

File Size:

111.19 KB

Description:

Super low power 2 modulus prescaler.
