Table 1 - PIN DESCRIPTION Symbol Vee, Vee Vss , Vss RESET Pin No.
9,43 26,60 57 Xl,X2 59,58 ClKOUT 56 RES 24 TEST 47 TMR IN 0, 20 TMR IN 1 21 TMR OUTO, 22 TMROUT 1 23 DROO, 18 DROl 19 NMI 46 INTO,INT1, INT2/1 NTAO, INT3/INTAl 45,44 42 41 Type I I 0 I o I I 0 0 I I I I I/O

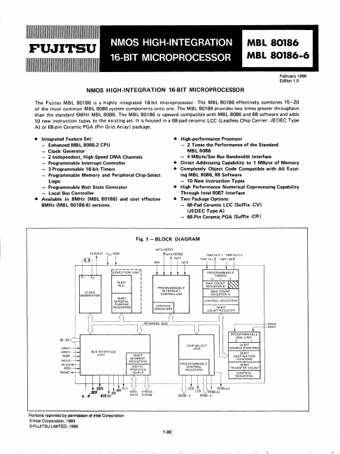

MBL 80186 MBL 80186-6 NMOS HIGH-INTEGRATION 16-BIT MICROPROCESSOR February 1986 Edition 1.0 The Fujitsu MBl 80186 is a highly integrated 16-bit microprocessor.
The MBl 80186 effectively combines 15-20 of the most common MBl 8086 system components onto one.
The MBl 80186 provides two times greater throughput than the standard 5MHz MBl 8086.
The MBl 80186 is upward compatible with MBl 8086 and 88 software and adds 10 new instruction types to the existing set.
It is housed in a 68-pad ceramic lC
Datasheet Details
MBL80186-6, MBL80186
Fujitsu
3.80 MB
Nmos high-integration 16-bit microprocessor.
This datasheet PDF includes multiple part numbers: MBL80186-6, MBL80186.
Please refer to the document for exact specifications by model.
