MBL8289

BIPOLAR BUS ARBITER

Fujitsu

MBL8289 General Description

TABLE 1 - PIN DESCRIPTION Symbol Type Name and Function Vee GND SO, Sl, S2 ClK lOCK CRQlCK RESB ANYRQST lOB Power: +5V supply ±10%. Ground. I Status Input Pins: The status input pins from an MBl8086, MBl 8088, MBl80186, MBl80188 or MBl8089 processor. The MBl8289 decodes these pins to initiate bu.

MBL8289 Datasheet (837.96 KB)

MBL8289 Datasheet Preview — Preview of MBL8289 PDF

Datasheet Details

Part number:

MBL8289

Manufacturer:

Fujitsu

File Size:

837.96 KB

Description:

Bipolar bus arbiter.

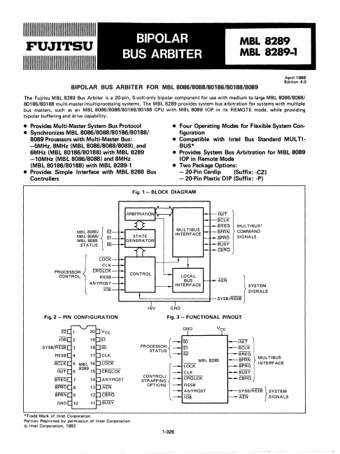

MBL 8289 MBL 8289-1 BIPOLAR BUS ARBITER FOR MBl8086/8088/80186/80188/8089 April 1986 Edition 4.0 The Fujitsu MBl 8289 Bus Arbiter is a 20'pin, 5-vo.
