FRL15DDB5, FRL15DDBx-A31-xxxxx-E - 1550nm 2.5Gbit/s Directly Modulated DFB Laser module

📥 Download Datasheet

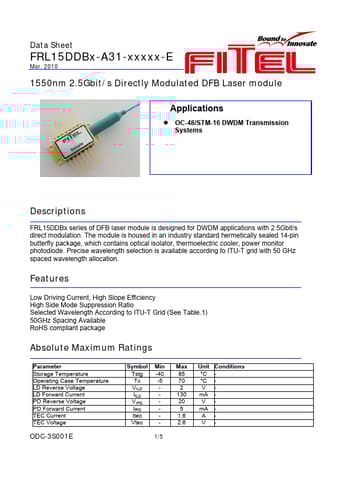

FRL15DDB5 Datasheet Preview — This datasheet PDF includes multiple part numbers: FRL15DDB5, FRL15DDBx-A31-xxxxx-E. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	FRL15DDB5, FRL15DDBx-A31-xxxxx-E
Manufacturer	Furukawa
File Size	171.50 KB
Description	1550nm 2.5Gbit/s Directly Modulated DFB Laser module
Datasheet	FRL15DDBx-A31-xxxxx-E-Furukawa.pdf
Note	This datasheet PDF includes multiple part numbers: FRL15DDB5, FRL15DDBx-A31-xxxxx-E. Please refer to the document for exact specifications by model.

FRL15DDB5 Product details

Description

FRL15DDBx series of DFB laser module is designed for DWDM applications with 2.5Gbit/s direct modulation.

Features

Low Driving Current, High Slope Efficiency High Side Mode Suppression Ratio Selected Wavelength According to ITU-T Grid (See Table.1) 50GHz Spacing Available RoHS compliant package Absolute Maximum Ratings Parameter Storage Temperature Operating Case Temperature LD Reverse Voltage LD Forward Current PD Reverse Voltage PD Forward Current TEC Current TEC Voltage Symbol Tstg Tc VrLD IfLD VrPD IfPD Itec Vtec Min -40 -5 1/5 Max 85 70 2 130 20 5 1.6 2.6 Unit °C °C V mA V mA A V Conditions - ODC-3.
