GS8634, GS8631 6-MHZ CMOS Rail-to-Rail I/O Opamps

Description

GS8631/32/34/31N 6MHZ CMOS Rail-to-Rail IO Opamps .
μ μ The GS863X have a high gain-bandwidth product of 6MHz, a slew rate of 4.

📥 Download Datasheet

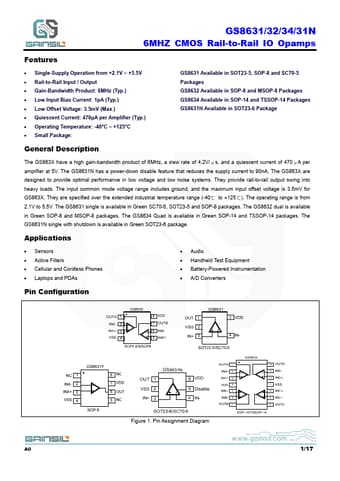

GS8634 Datasheet Preview — This datasheet PDF includes multiple part numbers: GS8634, GS8631. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: GS8634, GS8631
Manufacturer: GAINSIL
File Size: 603.78 KB
Datasheet: GS8631-GAINSIL.pdf
Description: 6-MHZ CMOS Rail-to-Rail I/O Opamps
Note: This datasheet PDF includes multiple part numbers: GS8634, GS8631.
Please refer to the document for exact specifications by model.

Features

* Single-Supply Operation from +2.1V ~ +5.5V
* Rail-to-Rail Input / Output
* Gain-Bandwidth Product: 6MHz (Typ. )
* Low Input Bias Current: 1pA (Typ. )
* Low Offset Voltage: 3.5mV (Max. )
* Quiescent Current: 470µA per Amplifier (Typ. )
* Operatin

Applications

* Sensors
* Active Filters
* Cellular and Cordless Phones
* Laptops and PDAs
* Audio
* Handheld Test Equipment
* Battery-Powered Instrumentation
* A/D Converters Pin Configuration Figure 1. Pin Assignment Diagram A0 1/17 Absolute
